Plate Heat Exchangers
Assos Boilers Flate Plate Heat Exchanger Manufacturers
Material- Frame: Steel, painted with double coat red colour
- Plates: Stainless Steel SS316L, titanium, SMO254
- Gaskets: EPDM, NBR, FKM

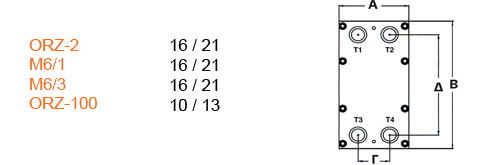

Max. operating / test Pressure (bar)
Max. operating temperature/ test Temperature (°C)
- With EPDM gaskets > 140°C / 160°C
- With FKM gaskets > 200°C
ORZ - 2
Dimensions
1 1/4" Male Thread
- A: 180mm
- B: 480mm
- C: 65mm
- D: 370mm
1 1/4" Male Thread
M6/1
Dimensions
2" Male Thread
- Α: 325mm
- B: 585mm
- C: 140mm
- D: 400mm
2" Male Thread
M6/3
Dimensions
2" / 2½"
Male Thread / flange
- Α: 325mm
- B: 825mm
- C: 140mm
- D: 640mm
2" / 2½"
Male Thread / flange
ORZ-100
Dimensions
4" Flange
- Α: 490mm
- B: 1000mm
- C: 230mm
- D: 844mm
4" Flange
